Haltere: a fruit-fly connectome brain that flies an FPV drone

A recurrent network whose 30,000 neurons and 2.77 million synaptic connections are copied from the Janelia male CNS connectome v1.0 (FlyEM, Cambridge Connectomics, Google Connectomics), trained to fly a quadcopter in the FPV simulator Liftoff. The drone's senses are written into the fly's own sensory neurons (haltere, wing campaniform, optic-flow, ocellar, Johnston's organ, compass and goal cells) and the four stick commands are read out of the wing motor neurons and their premotor partners. Synaptic structure and sign are fixed by the connectome; per-synapse gains, neuron gains, biases, time constants, sensory encoders and the readout are trained.

Code, training pipeline, Liftoff integration and videos: https://github.com/skulitom/haltere

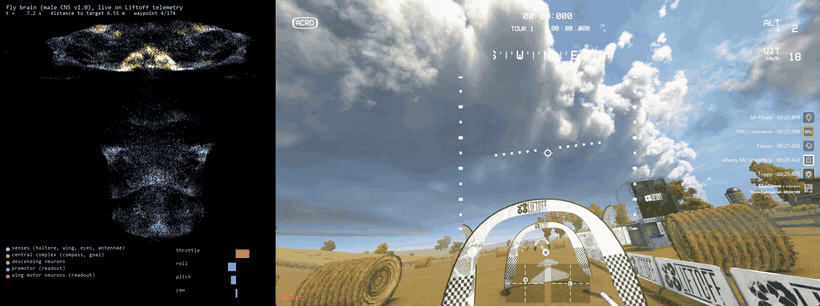

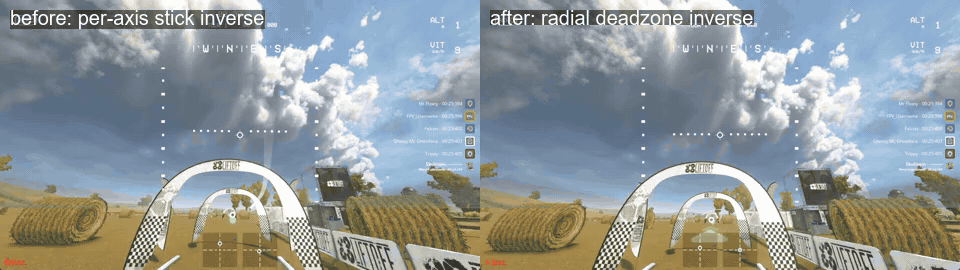

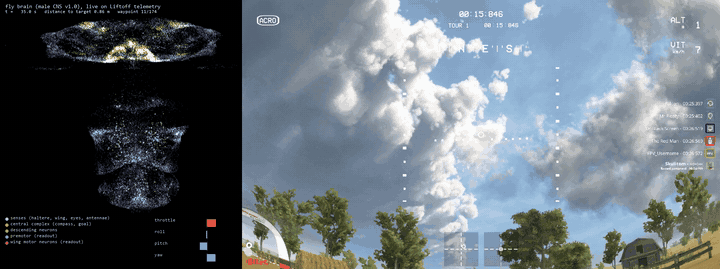

The lap brain on a taught race line in Liftoff: gates 0 to 6 in 38 s at 4.8 m/s, peaks of 8.3 m/s, with a steady horizon (roll and pitch rate shake 2 deg/s, against 26 before the pilot inverted Liftoff's radial stick deadzone exactly).

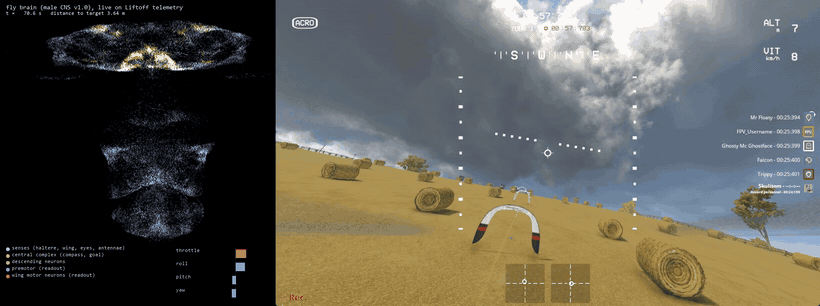

By sight: the gate detector finds the arches in the FPV image and the rabbit pilot turns them into a smooth line the brain follows; six of the seven gates in one run, both hill gates included.

Files

file	what	use
ftPath2_best.pt	the smooth brain fine-tuned on moving targets (two stages): races a taught lap at 4.8 m/s and flies by sight	haltere liftoff fly ftPath2_best.pt --liftoff-config liftoff.yaml --waypoints-file track_strawbale.yaml --path-speed 8 --lookahead 6 --z-lead 1.5 --flow-gain 0.5 --face-travel 0.8 --face-ahead 6 --throttle-scale 0.8 --gyro telemetry
ftSmooth_best.pt	fine-tuned with 50 ms extra latency and a smoothness penalty: hover, orbit, climb-and-dive	haltere liftoff fly ftSmooth_best.pt
ftRobust_best.pt	wide domain randomization; first brain that flew in Liftoff
imJ_best.pt	imitation of the MLP controller with the premotor readout
mlp_baseline.pt	the MLP teacher (no connectome)	control experiment
gatenet_best.pt	gate detector (5 M parameters) on the FPV image, 42k labelled frames	--vision gatenet_best.pt --camera camera_seat.yaml --sight rabbit
gatenet_colourblind.pt	the same flights, three held out whole, with hue/saturation/gamma/sharpness/scale augmentation	studying generalisation, not flying — see the results table
liftoff.yaml	the Liftoff mapping: stick and gyro signs, hover point, and the radial stick-deadzone model	--liftoff-config liftoff.yaml
track_strawbale.yaml	the taught Straw Bale Field Day lap (174 waypoints)	--waypoints-file, liftoff score --track
gates_strawbale.json	the lap's seven gates (position, heading)	liftoff score --gates
camera_seat.yaml	FPV camera calibration (focal length, tilt)	--camera with --vision
flight.npz, flight.nodes.parquet, flight.meta.json	the built flight graph: 30,000 neurons, signed synapse counts, named populations	required by every brain checkpoint

The checkpoints are slim (parameters only, about 12 MB); the graph is loaded next to them. Full checkpoints with optimizer state are on the GitHub releases (v0.4.0 has the videos of the fast lap and of the flight by sight).

Results

controller	simulator, full difficulty	Liftoff
MLP baseline	0.05 m mean error, 100% within 0.5 m	not flown
imJ_best (imitation)	0.22 m, 95%	drifts 1.4 m on the physics stand-in

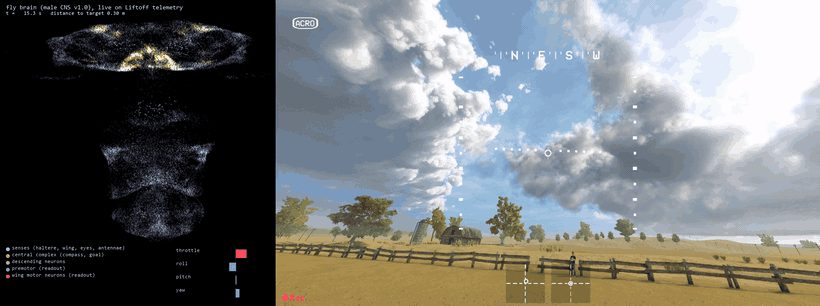

ftRobust_best (+ domain randomization)	0.20 m, 99.6%	2 m hover, 0.34 m mean error over 40 s; 3 m square pattern

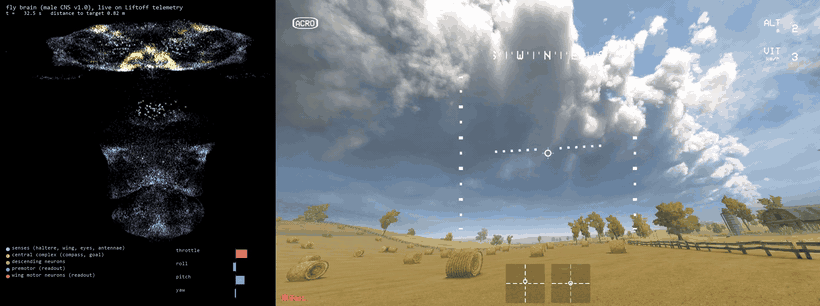

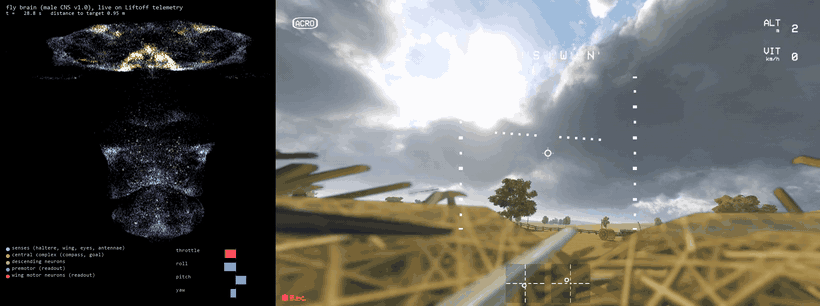

ftSmooth_best (+ latency, smoothness)	0.30 m, 95% (50 ms delay)	2 m hover, 0.35 m mean error with a quarter of the stick jitter; orbit (0.75 m tracking error at 0.8 m/s) and climb-and-dive (1.1 m at about 1 m/s), no crashes; taught lap at 1.2 m/s with 0.9-1.0 m error
ftPath2_best (+ moving targets)	0.37 m, 80% static; 0.76 m following a 1 m/s target, 3.1 m at 2 m/s	taught race lap: the seven gates in 38 s at 4.8 m/s (peaks 8.0 m/s) with --flow-gain 0.5, no contact, roll and pitch rate shake 2 deg/s; by sight with the rabbit pilot, all seven gates in 64 s at 3.19 m/s, every arch within 0.4 m of centre, no contacts between gates 0 and 6, yaw shake 2.0 deg/s
gatenet_best (gate detector, 5 M parameters)	on whole flights recorded AFTER it was trained: 85.6% recall, centre error 2.9 px at 320 wide, 11.6% false positives on gate-less frames (9.6% pooled over all the gate-less frames of those flights). (An earlier card said 98% on "a held-out tenth" — that split took single frames from the same flights, and frames 130 ms apart are the same picture, so it could not fall)	flies by sight: five clean 7/7 laps of Straw Bale Field Day (clean between gates 0 and 6), the shipped-defaults one gates 0-6 in 64 s at 3.19 m/s with every arch within 0.4 m of centre and no contacts; the fastest 58 s at 3.35 m/s
gatenet_colourblind (same frames, strong augmentation)	78.7% recall as itself and 77-80% through the whole colour battery — grayscale, desaturation, hue 60 and 180, darkness, gamma, blur — where gatenet_best falls to 43.1% in grayscale and 51.1% at hue+180 with 40.6 px of centre error	not for flying (7 points of in-domain recall). On an unseen map (Pine Valley) it fires on 2.7% of frames against the shipped one's 3.0%, both below their false-positive rates at home (8.7% and 11.6%): colour invariance was necessary and is not sufficient

Full difficulty: 25 degrees of tilt, 90 deg/s rotation, 1 m/s velocity and 1 m offset at the start, targets anywhere in a 6 x 6 x 2 m box, physics jittered by 35%.

How to use

git clone https://github.com/skulitom/haltere && cd haltere
uv venv --python 3.13 .venv && uv pip install --python .venv/Scripts/python.exe torch --index-url https://download.pytorch.org/whl/cu128
uv pip install --python .venv/Scripts/python.exe -e ".[dev]"
# put the files of this repo into artifacts/ and data/built/, then:
haltere eval artifacts/ftSmooth_best.pt          # simulator evaluation
haltere render artifacts/ftSmooth_best.pt        # neural activity + drone video
haltere liftoff doctor                           # everything needed to fly it in Liftoff

Data

Connectome: male CNS v1.0, Janelia FlyEM, CC BY 4.0, downloaded by haltere fetch from gs://flyem-male-cns (neuron annotations, neurotransmitter predictions, connection weights). Not redistributed here.

Method in one paragraph

Lappalainen et al. 2024-style connectome-constrained RNN (rate units, weights proportional to synapse counts with fixed neurotransmitter signs) on a 30k-neuron subgraph of the male CNS (all neurons within two synapses of the flight senses and the wing motor neurons, plus the central complex and all descending neurons). Trained in a batched differentiable quadrotor simulator with Betaflight-style rates and rate PID (Liftoff's own Zetaflight gains) by imitation of an MLP controller, then fine-tuned by back-propagation through the simulator with domain randomization. Flown in Liftoff through its UDP telemetry and a virtual Xbox controller (ViGEmBus). The lap brain was fine-tuned on targets drifting at up to 3 m/s (configs/train_path.yaml), then on a mix with 30% static targets, a Huber position cost and a stronger smoothness penalty (train_path2.yaml). The brain has no camera and no heading objective; the pilot's --face-travel yaws the nose toward the next point on the path so the FPV view looks where it flies. Two pilot-side findings made the flight smooth and fast without retraining: Liftoff applies its gamepad deadzone to each stick's two-axis vector, so the sticks are now inverted as vectors (the per-axis inverse had distorted the brain's small corrections into a 2.4 Hz wobble); and the brain cruises at the speed its optic-flow and airflow senses report, so scaling the horizontal velocity written into those senses (--flow-gain) sets its speed, much as a fly speeds up when its visual feedback gain is lowered.
