Publish Ropedia task-suite derived artifacts

PROJECT_README.md

@@ -62,9 +62,14 @@ with [`scripts/render_task_suite_infographic.py`](scripts/render_task_suite_info
 so the published PNG is a presentation graphic with verified labels and metrics,
 not a hallucinated metric sheet.

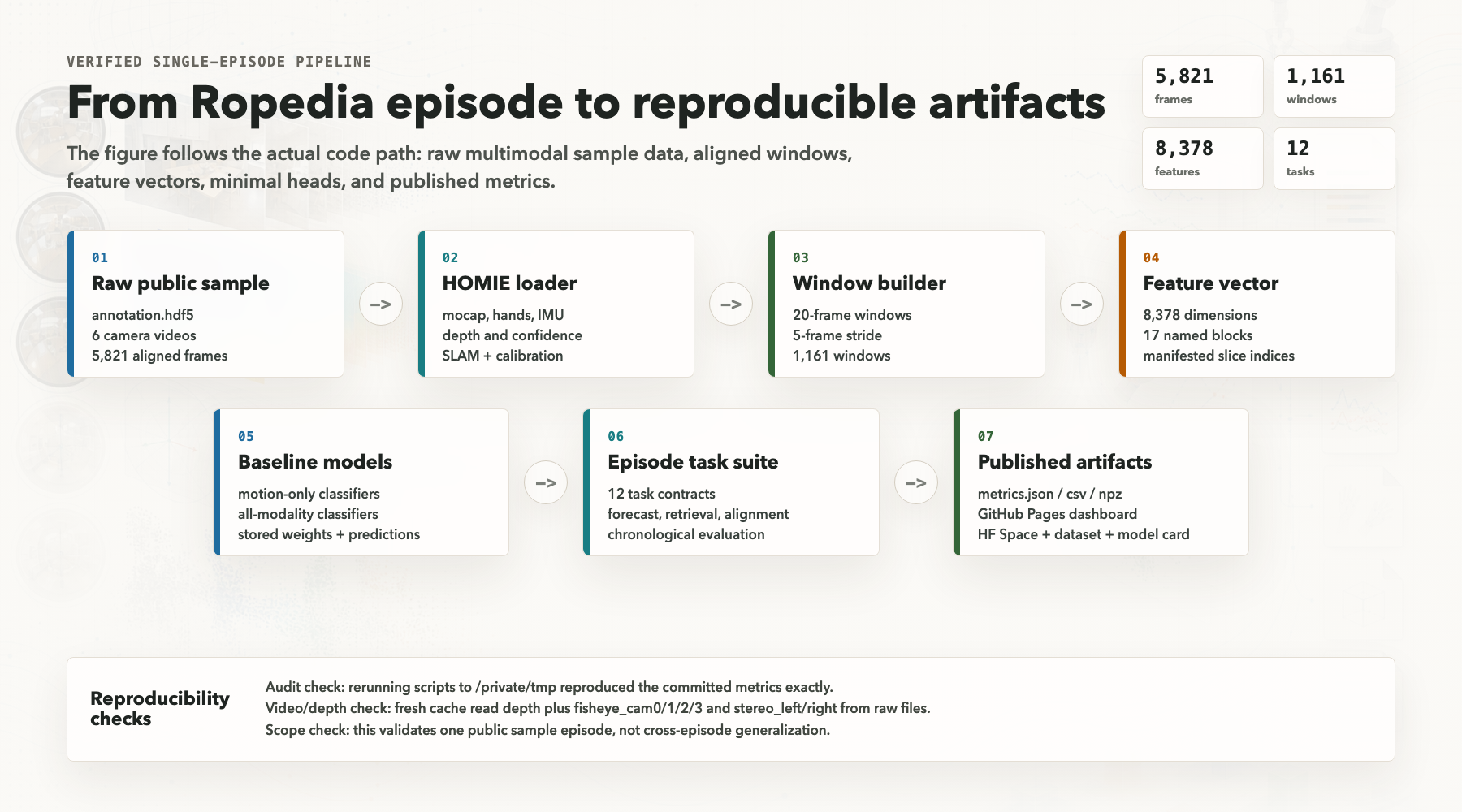

-![Verified Pipeline](docs/assets/pipeline_diagram.svg)
+![Verified Pipeline](docs/assets/pipeline_diagram.png)

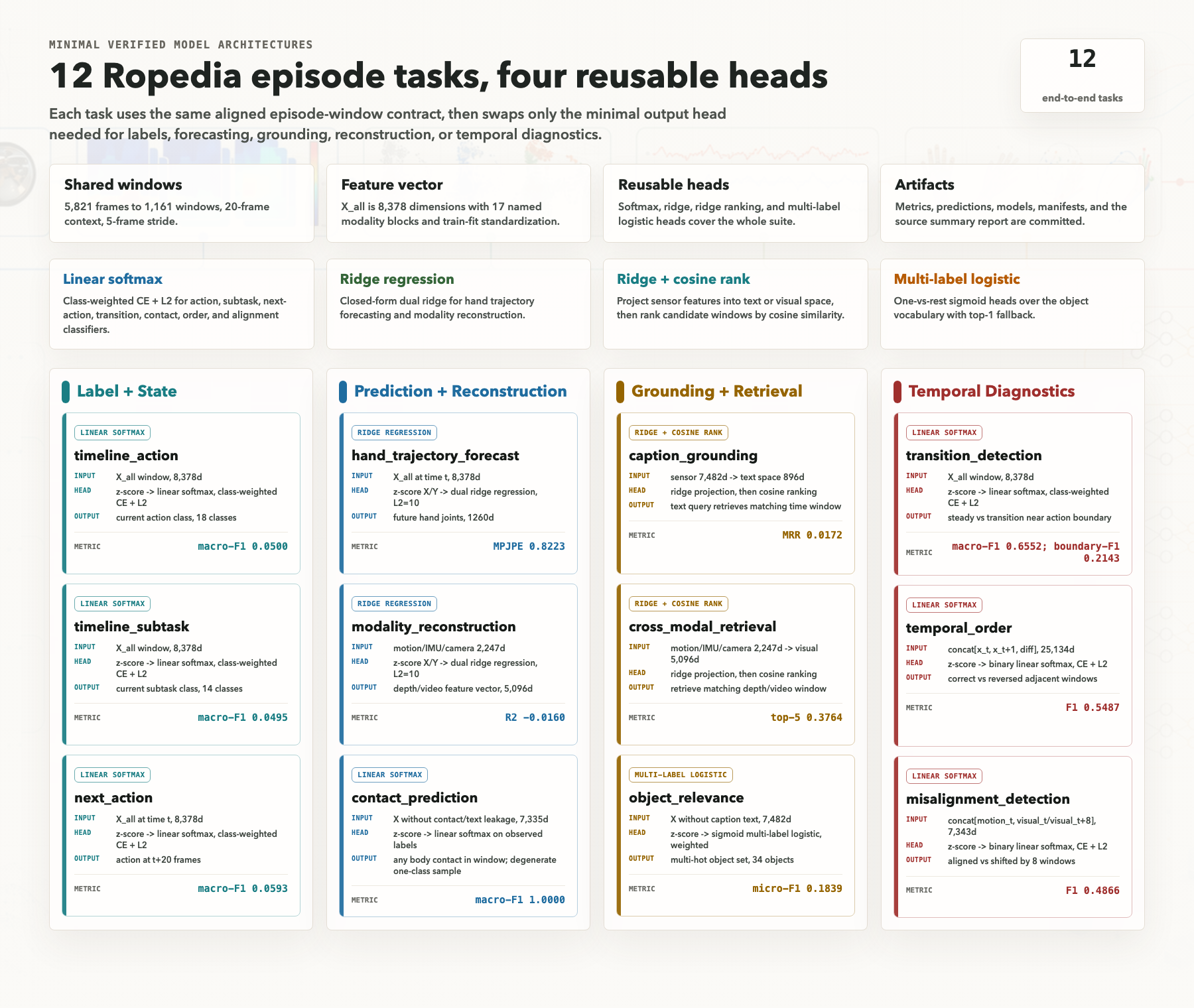

-![Minimal 12-task model architectures](docs/assets/task_architectures.svg)
+![Minimal 12-task model architectures](docs/assets/task_architectures.png)
+
+The pipeline and architecture figures use the same pattern: ChatGPT-image
+provides text-free visual backgrounds, while
+[`scripts/render_overview_figures.py`](scripts/render_overview_figures.py)
+overlays exact labels, dimensions, and metrics from the committed result files.

 ## Scope

@@ -82,6 +87,7 @@ scripts/
   episode_task_suite.py             # 12 end-to-end task definitions
   generate_visualizations.py        # refreshes SVG charts + summary JSON
   render_task_suite_infographic.py  # renders the ChatGPT-image-backed PNG
+  render_overview_figures.py        # renders polished pipeline/architecture PNGs

 results/
   min_action_model/                 # motion-only action baseline artifacts
@@ -94,7 +100,8 @@ docs/
   index.html                        # GitHub Pages dashboard
   data/summary_metrics.json         # website-readable metrics bundle
   assets/task_suite_infographic.png # 12-task presentation graphic
-  assets/task_architectures.svg     # verified 12-task minimal architecture map
+  assets/pipeline_diagram.png       # verified episode pipeline graphic
+  assets/task_architectures.png     # verified 12-task minimal architecture map
   assets/charts/*.svg               # regenerated visualizations

 notes/
@@ -173,6 +180,8 @@ Refresh charts and the website data bundle:

 ```bash
 python scripts/generate_visualizations.py
+python scripts/render_overview_figures.py
+python scripts/render_task_suite_infographic.py
 ```

 ## Minimal 12-Task Architectures

README.md

@@ -34,7 +34,7 @@ This is the reviewable half of the project. You can inspect the task outputs, co

 - `results/**/*.json`: verified metrics and metadata
 - `results/**/*.csv`: predictions, confusion matrices, per-class metrics, windows, boundaries
-- `docs/assets/*.svg` and `docs/assets/*.png`: generated diagrams and charts
+- `docs/assets/*.svg` and `docs/assets/*.png`: generated diagrams, charts, and ChatGPT-image-backed overview figures
 - `docs/assets/task_suite_infographic.png`: ChatGPT-image-backed infographic with low-resolution public-sample modality thumbnails and verified metric overlays
 - `docs/data/summary_metrics.json`: dashboard-readable summary bundle
 - `scripts/*.py`: reproduction scripts
@@ -75,4 +75,6 @@ For research claims, rerun the same scripts over many episodes and evaluate on h

 ![12-task infographic](assets/task_suite_infographic.png)

-![Minimal task architectures](assets/task_architectures.svg)
+![Verified episode pipeline](assets/pipeline_diagram.png)
+
+![Minimal task architectures](assets/task_architectures.png)

docs/index.html

@@ -270,6 +270,7 @@
     .signal strong { text-align: right; font-family: var(--font-mono); font-size: 13px; font-variant-numeric: tabular-nums; }

     section { padding: 88px 0 96px; border-bottom: 1px solid var(--soft-line); }
+    #suite { padding: 62px 0 76px; }
     .section-head {
       display: flex;
       justify-content: space-between;
@@ -311,6 +312,12 @@
     .architecture-image {
       display: block;
     }
+    .callout-row {
+      display: grid;
+      grid-template-columns: repeat(2, minmax(0, 1fr));
+      gap: 18px;
+      margin-top: 18px;
+    }
     .two-col {
       display: grid;
       grid-template-columns: minmax(0, 1fr) minmax(340px, 0.52fr);
@@ -453,14 +460,14 @@
     @media (max-width: 960px) {
       .hero-inner, .two-col { grid-template-columns: 1fr; }
       .hero-inner { min-height: 0; }
-      .hero-stats, .models, .task-grid, .artifact-grid, .chart-grid { grid-template-columns: repeat(2, minmax(0, 1fr)); }
+      .hero-stats, .models, .task-grid, .artifact-grid, .chart-grid, .callout-row { grid-template-columns: repeat(2, minmax(0, 1fr)); }
       .section-head { display: block; }
       .section-head p { margin-top: 14px; }
       .nav-links { display: none; }
     }
     @media (max-width: 640px) {
       .wrap { width: min(100% - 28px, var(--max)); }
-      .hero-stats, .models, .task-grid, .artifact-grid, .chart-grid { grid-template-columns: 1fr; }
+      .hero-stats, .models, .task-grid, .artifact-grid, .chart-grid, .callout-row { grid-template-columns: 1fr; }
       .hero-inner, section { padding: 46px 0; }
       .signal { grid-template-columns: 1fr; }
       .signal strong { text-align: left; }
@@ -485,6 +492,7 @@
         <span>Ropedia Episode Task Suite</span>
       </a>
       <div class="nav-links" aria-label="Page navigation">
+        <a href="#suite">Suite</a>
         <a href="#pipeline">Pipeline</a>
         <a href="#models">Models</a>
         <a href="#architectures">Arch</a>
@@ -508,7 +516,7 @@
           and a clear line between single-episode inspection and real held-out evaluation.
         </p>
         <div class="hero-actions">
-          <a class="button primary" href="#tasks">Inspect 12 tasks</a>
+          <a class="button primary" href="#suite">Inspect 12 tasks</a>
           <a class="button" href="https://cy0307-ropedia-episode-task-suite.static.hf.space/">Open HF app</a>
           <a class="button" href="https://github.com/ChaoYue0307/ropedia-episode-task-suite">View repository</a>
           <a class="button" href="data/summary_metrics.json">Read metrics JSON</a>
@@ -536,18 +544,29 @@
   </header>

   <main id="main">
+    <section id="suite">
+      <div class="wrap">
+        <div class="section-head">
+          <h2>Ropedia 12-task suite, first.</h2>
+          <p>The top-level map now appears before the lower implementation sections, using sample-modality thumbnails plus verified task names and metrics.</p>
+        </div>
+        <img class="task-suite-image" src="assets/task_suite_infographic.png" alt="ChatGPT-image-backed infographic showing all 12 Ropedia episode tasks">
+      </div>
+    </section>
+
     <section id="pipeline">
       <div class="wrap">
         <div class="section-head">
           <h2>From raw episode to checked artifacts.</h2>
           <p>Every script works from one data contract: aligned multimodal windows, explicit labels, cached feature extraction, and artifact-first evaluation.</p>
         </div>
-        <div class="two-col">
-          <img class="pipeline-image" src="assets/pipeline_diagram.svg" alt="Verified Ropedia all-modality pipeline diagram">
+        <img class="pipeline-image" src="assets/pipeline_diagram.png" alt="Verified Ropedia all-modality pipeline diagram">
+        <div class="callout-row">
           <div class="callout">
             <h3>What this project proves</h3>
             <p>It proves the full engineering loop: reading Ropedia sample data, aligning modalities, converting them into model-ready windows, defining meaningful tasks, producing metrics, and packaging every artifact for review.</p>
-            <br>
+          </div>
+          <div class="callout">
             <h3>What it does not prove</h3>
             <p>It does not claim general embodied intelligence. A single episode cannot support cross-environment generalization; that requires many episodes and held-out episode splits.</p>
           </div>
@@ -574,20 +593,19 @@
     <section id="architectures">
       <div class="wrap">
         <div class="section-head">
-          <h2>The 12 tasks share three head families.</h2>
-          <p>The diagram separates the shared episode-window feature pipeline from the task-specific heads: linear softmax, ridge projection/regression, and multi-label logistic regression.</p>
+          <h2>The 12 tasks share four head families.</h2>
+          <p>The diagram separates the shared episode-window feature pipeline from the task-specific heads: linear softmax, ridge regression, ridge ranking, and multi-label logistic regression.</p>
         </div>
-        <img class="architecture-image" src="assets/task_architectures.svg" alt="Verified minimal architecture diagram for all 12 Ropedia episode tasks">
+        <img class="architecture-image" src="assets/task_architectures.png" alt="Verified minimal architecture diagram for all 12 Ropedia episode tasks">
       </div>
     </section>

     <section id="tasks">
       <div class="wrap">
         <div class="section-head">
-          <h2>Single-episode tasks, deliberately scoped.</h2>
-          <p>The suite treats one episode as a controlled lab for temporal structure, modality alignment, retrieval, reconstruction, and action understanding.</p>
+          <h2>Task cards and metrics.</h2>
+          <p>The same 12 tasks are kept filterable here so the supervised, forecast, retrieval, and diagnostic probes can be inspected individually.</p>
         </div>
-        <img class="task-suite-image" src="assets/task_suite_infographic.png" alt="ChatGPT-image-backed infographic showing all 12 Ropedia episode tasks">
         <div class="task-toolbar" aria-label="Task filters">
           <button class="filter active" data-filter="all">All tasks</button>
           <button class="filter" data-filter="supervised">Supervised</button>

notes/episode_task_suite.md

@@ -92,7 +92,7 @@ Task-specific architecture details:
 Diagram:

 ```text
-docs/assets/task_architectures.svg
+docs/assets/task_architectures.png
 ```

 ## Current Results

scripts/render_overview_figures.py

@@ -0,0 +1,766 @@
+#!/usr/bin/env python3
+"""
+Render polished PNG overview figures for the Ropedia project page.
+
+The ChatGPT-image assets are used only as text-free visual backgrounds. All
+labels, dimensions, task names, and metrics are read from committed result
+files via scripts/generate_visualizations.py so the final figures stay
+auditable.
+"""
+
