figures for the Gala article

README.md

@@ -0,0 +1,18 @@
+---
+license: apache-2.0
+pretty_name: Gala article assets
+---
+
+# gala-article-assets
+
+Figures for the Gala article (see [junafinity/Gala-598M-MLX](https://huggingface.co/junafinity/Gala-598M-MLX)).
+All plots are generated directly from the training/eval logs shipped in the model repo.
+
+| file | shows |
+|---|---|

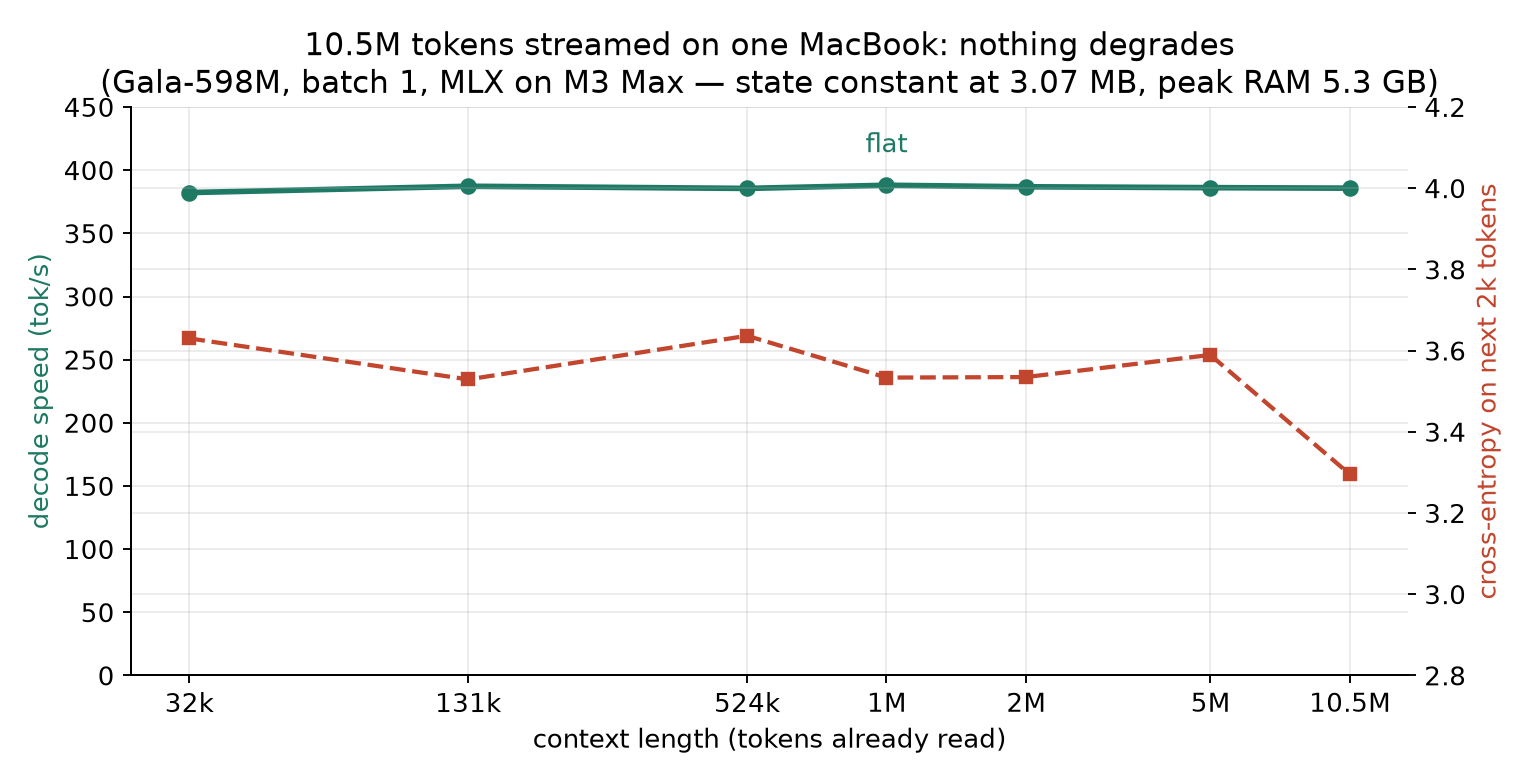

+| `fig_10m.png` | 10.5M-token stream: decode speed and next-2k loss flat at every depth |

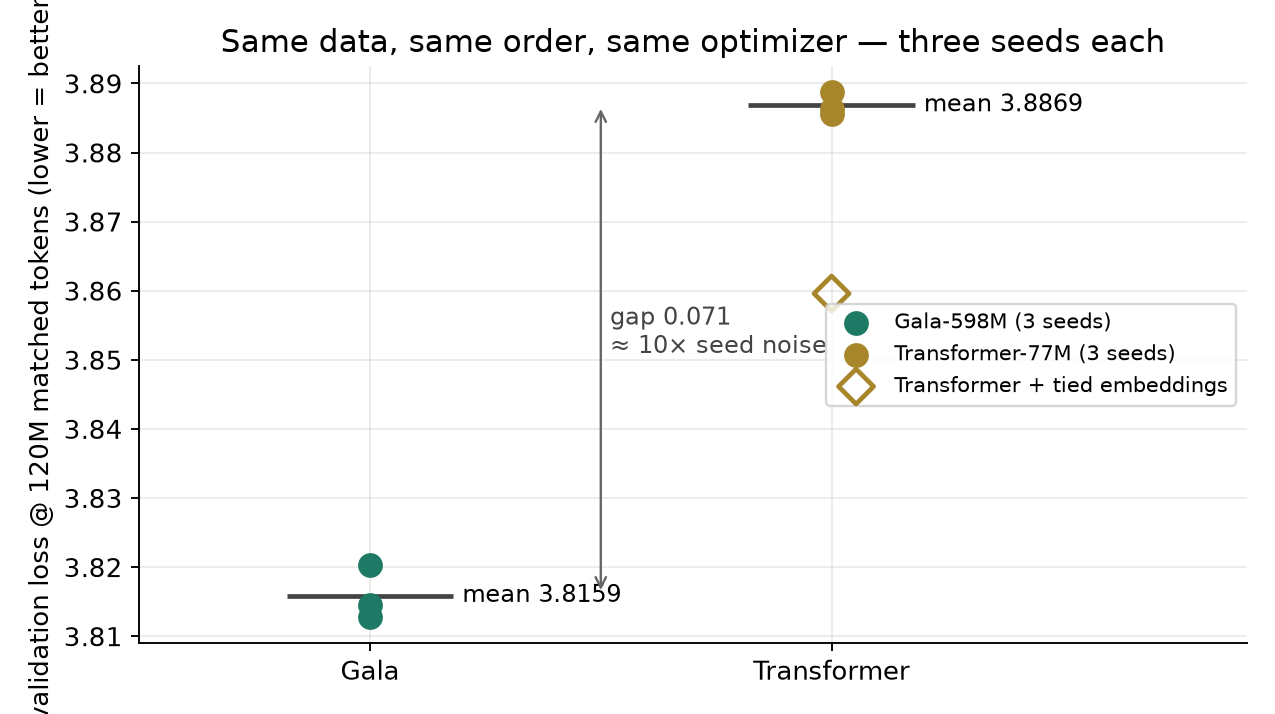

+| `fig_seeds.png` | 3-seed comparison, Gala vs Transformer, matched 120M tokens |

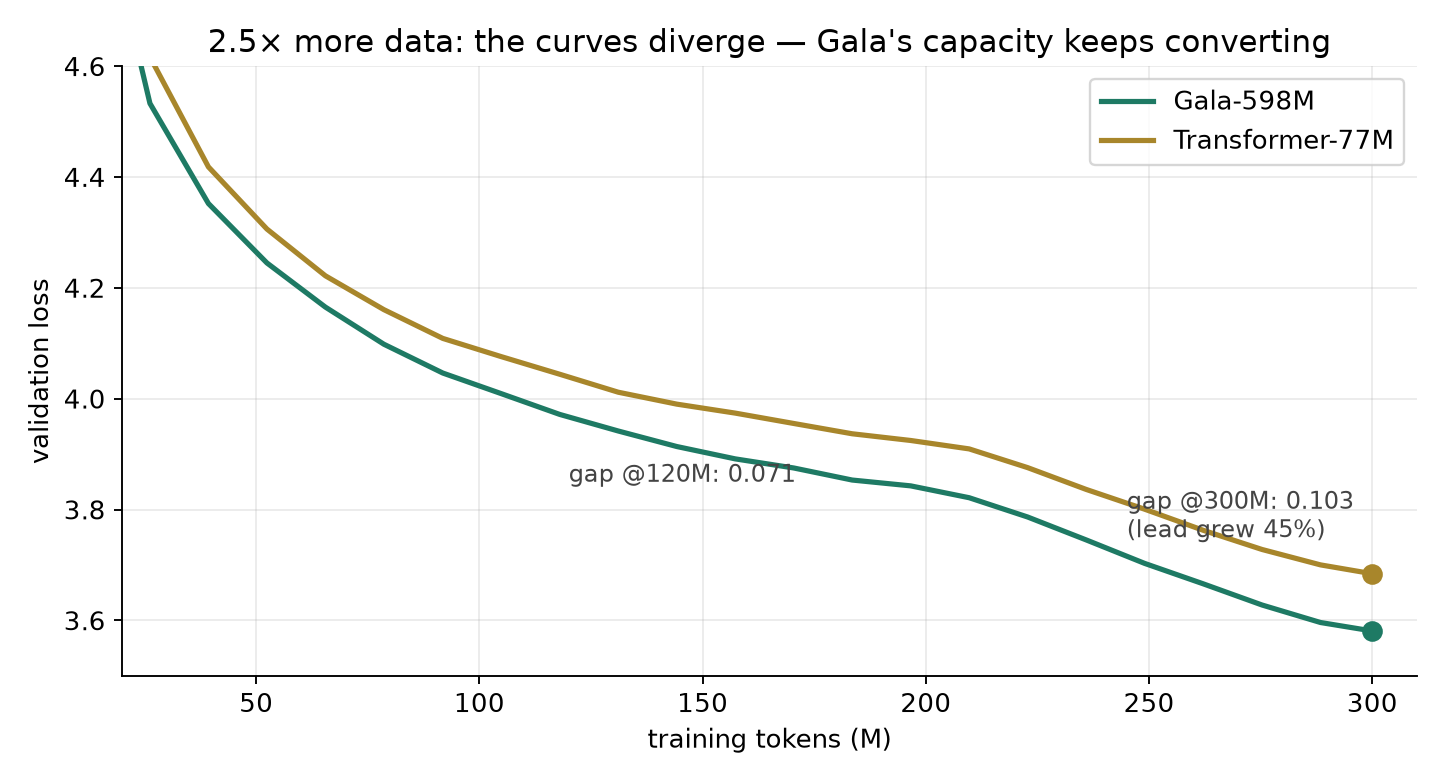

+| `fig_scale.png` | 120M→300M scale study: the curves diverge |

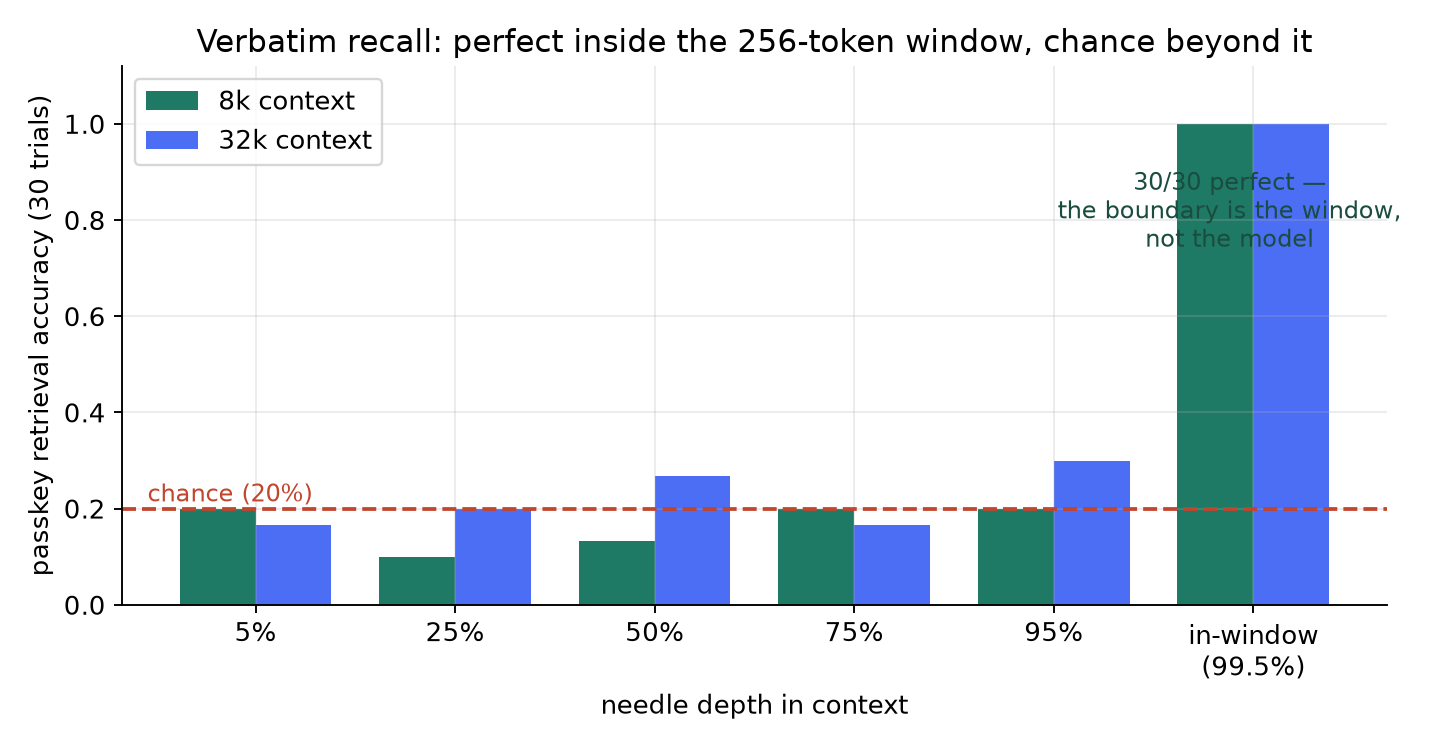

+| `fig_passkey.png` | recall boundary: 100% in-window, chance beyond |

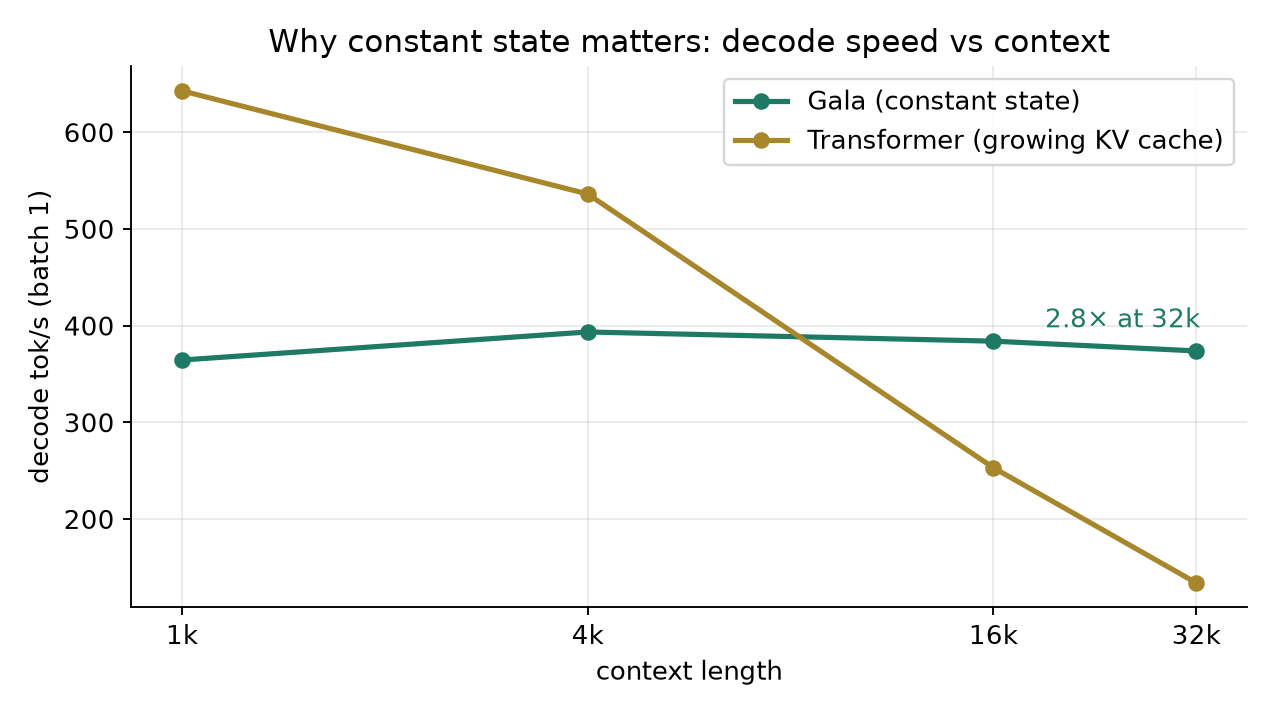

+| `fig_decode.png` | decode speed vs context, constant state vs growing KV |

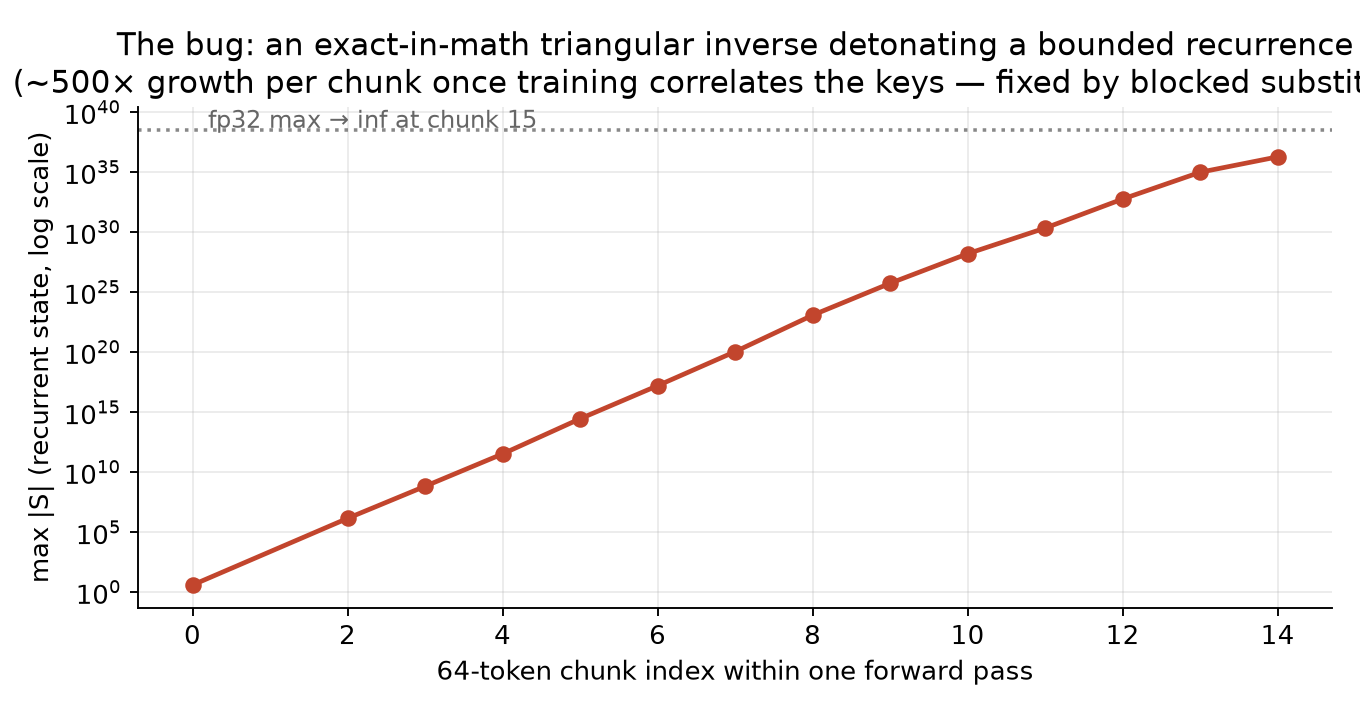

+| `fig_nan.png` | the chunked-delta-rule inverse instability trace |
