Copy of mlboydaisuke/Depth-Anything-3-Small-LiteRT at 15344dc67dca

.gitattributes

@@ -33,3 +33,6 @@ saved_model/**/* filter=lfs diff=lfs merge=lfs -text
 *.zip filter=lfs diff=lfs merge=lfs -text
 *.zst filter=lfs diff=lfs merge=lfs -text
 *tfevents* filter=lfs diff=lfs merge=lfs -text

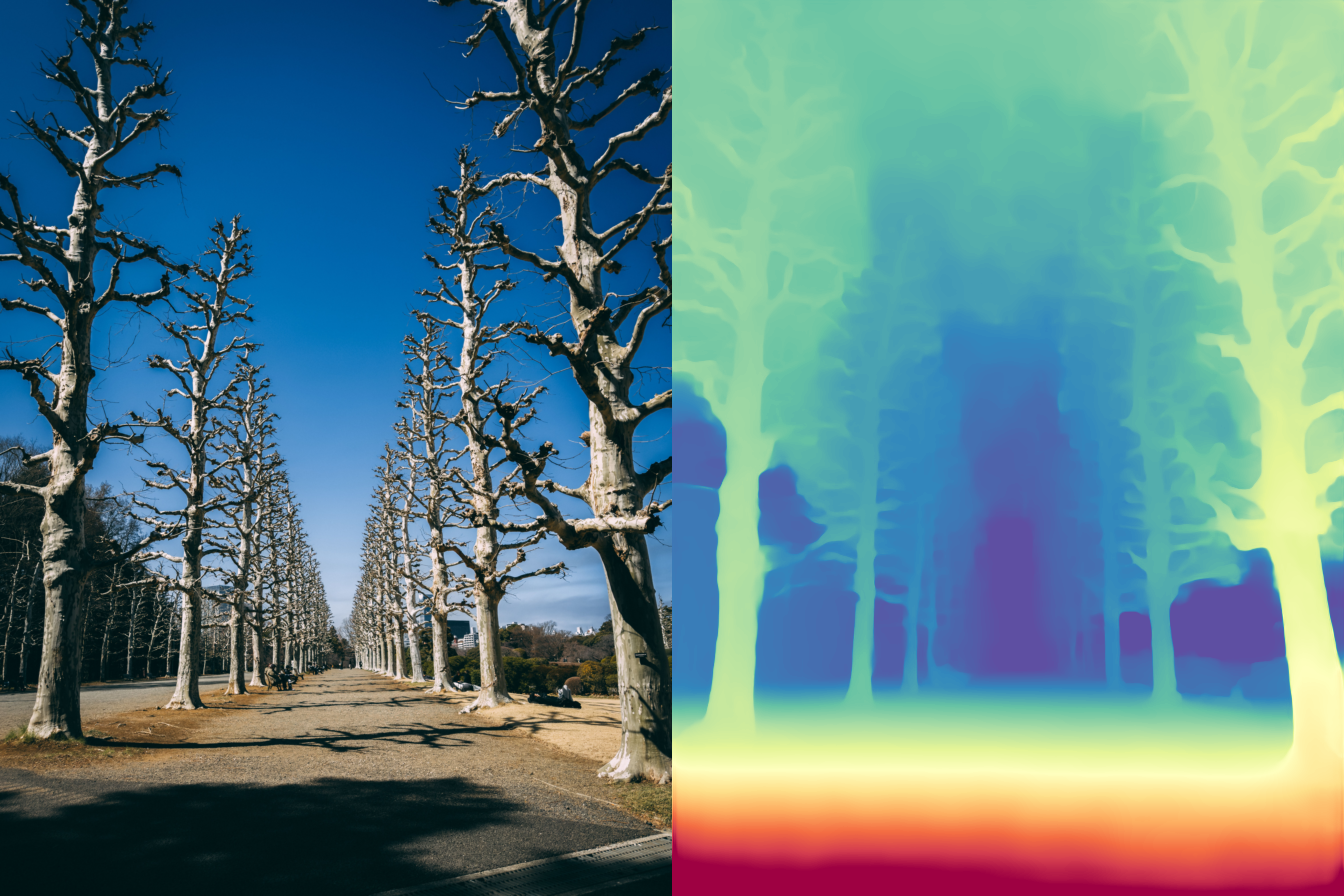

+samples/avenue.png filter=lfs diff=lfs merge=lfs -text

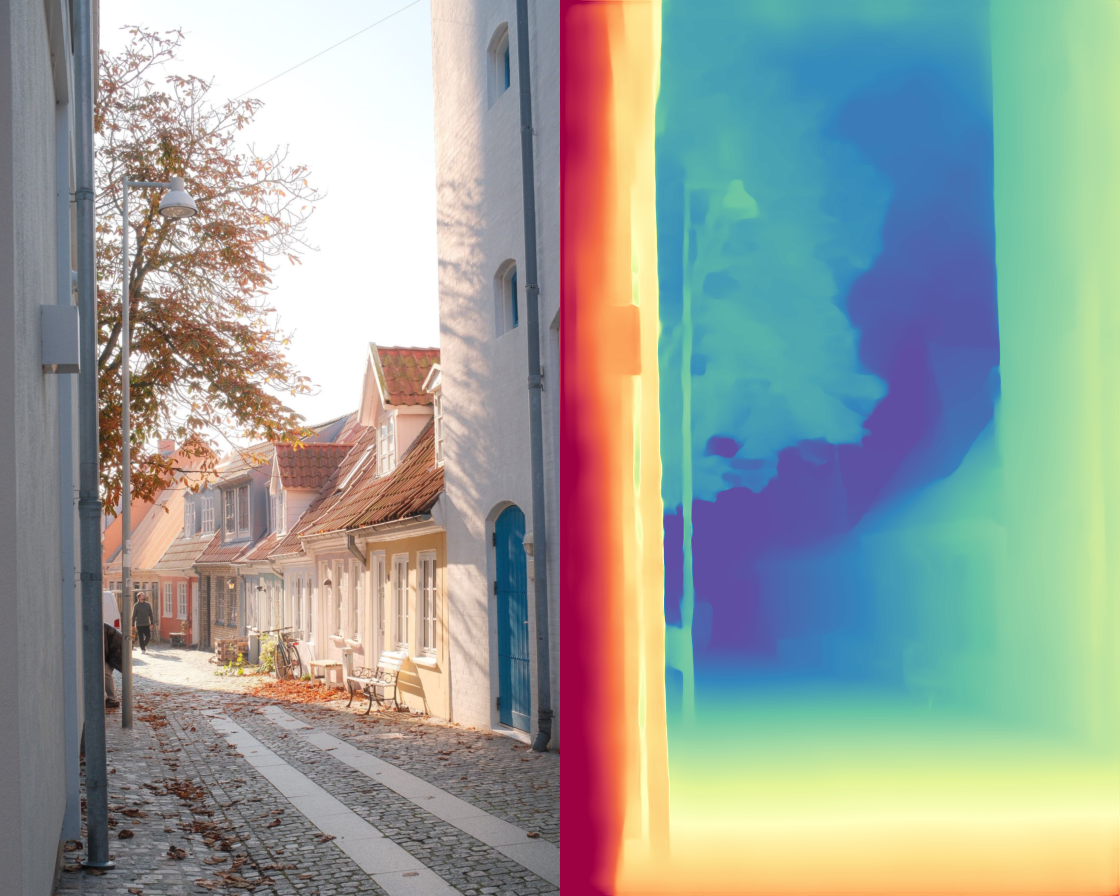

+samples/alley.png filter=lfs diff=lfs merge=lfs -text

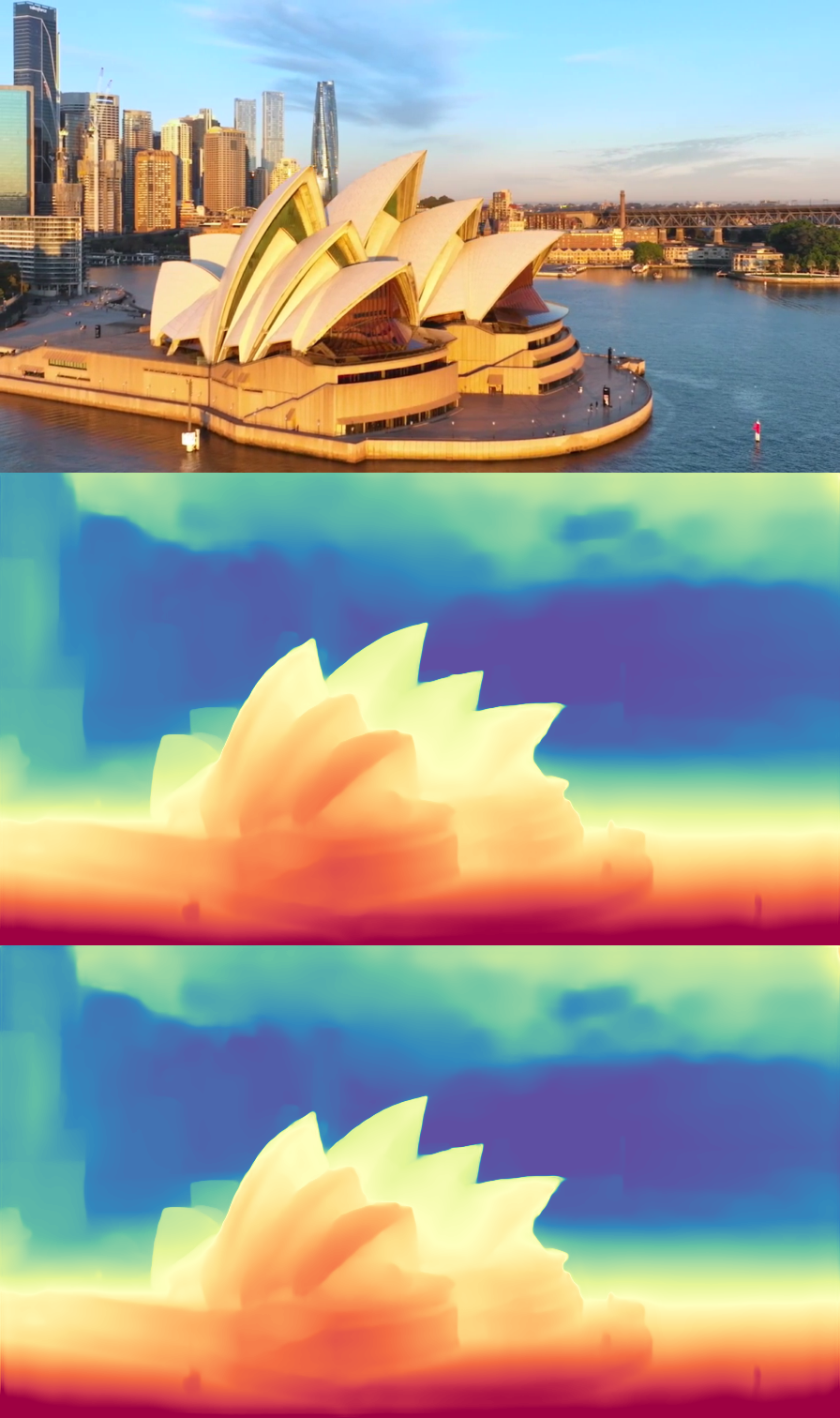

+samples/sydney_official_vs_litert.png filter=lfs diff=lfs merge=lfs -text

README.md

@@ -0,0 +1,86 @@
+---
+license: apache-2.0
+library_name: litert
+pipeline_tag: depth-estimation
+tags:
+  - litert
+  - tflite
+  - depth-estimation
+  - monocular-depth
+  - on-device
+  - gpu
+  - depth-anything
+base_model: depth-anything/DA3-SMALL
+base_model_relation: quantized
+---
+
+# Depth Anything 3 (Small) — LiteRT GPU, monocular depth
+
+On-device **LiteRT / TFLite** conversion of [**Depth Anything 3 — Small**](https://huggingface.co/depth-anything/DA3-SMALL)
+(ByteDance-Seed, Apache-2.0) for **monocular depth**, running fully on the mobile **GPU** via the LiteRT
+`CompiledModel` API (ML Drift delegate). No CPU fallback ops — the whole graph is GPU-compatible.
+
+| | |
+|---|---|
+| Task | Monocular depth (single RGB → depth) |
+| Backbone | DINOv2 ViT-S + RoPE, DPT/DualDPT depth head |
+| Input | `[1, 3, 896, 504]` NCHW float32, ImageNet-normalized, **native portrait aspect** |
+| Output | `[1, 1, 896, 504]` depth |
+| Precision / size | FP16, **55 MB** |
+| Device | Pixel 8a, LiteRT GPU (`Accelerator.GPU`), **~1.8 s / image** |
+| Fidelity | **Pearson corr 0.99948** vs the official PyTorch DA3-Small pipeline |
+
+## Why a fixed 896×504 (native aspect, not square)
+
+DA3 processes images at their **native aspect ratio** (`upper_bound_resize`, longer side → 896, multiple of 14).
+Forcing a square `896×896` and letterbox-padding drops the match to corr **0.977** (the black padding leaks into
+the content through global attention). Converting at the native rectangle restores **corr 0.9994** and is also
+faster (fewer tokens). This checkpoint is built for **portrait ~9:16**. For another aspect, re-convert at that
+shape (or your camera's fixed aspect) with the script below.
+
+## Preprocessing (must match)
+
+```
+resize to 504×896 (W×H)  →  x/255  →  (x - mean) / std
+mean = [0.485, 0.456, 0.406], std = [0.229, 0.224, 0.225]   # ImageNet, RGB, NCHW
+```
+
+## GPU-clean conversion (what was patched)
+
+Converted with `litert-torch`. DA3 is not GPU-clean out of the box; the following exact, GPU-clean rewrites
+were applied (all numerically faithful unless noted):
+
+1. checkpoint `model.` key-prefix strip (load fix)
+2. RoPE `max_position = int(positions.max())+1` → constant (torch.export data-dependent)
+3. fused-QKV attention → 3 separate Linears + 4D attention (avoids 5D RESHAPE; exact, 1e-6)
+4. **LayerScale** `gamma` folded into `attn.proj` / `mlp.fc2` (the LayerScale MUL otherwise mis-lays-out the
+   token dim on the GPU delegate: `fully_connected {1,1,N,C} vs {N,1,1,C}`)
+5. `pos_embed` bicubic interpolation **baked** to a constant (the interpolate of a constant emits `GATHER_ND`
+   on desktop and `RESIZE_BILINEAR` with 0 runtime inputs on device)
+6. **ConvTranspose2d(k=s,stride=s)** → zero-stuff (nearest-upsample × top-left mask) + `Conv2d` (flipped
+   weight) — exact equivalent (~1e-7), because the Pixel-8a GPU rejects `TRANSPOSE_CONV` and the conv+
+   depth-to-space alternative needs >4D
+7. DPT-head `custom_interpolate` `align_corners=True → False` (GPU bans `align_corners=True` resize) — **the
+   only non-exact rewrite**; source of the residual ~0.05 % vs the official model
+8. head UV pos-embed-again disabled (its `make_sincos` broadcast emits `BROADCAST_TO`; ratio-0.1 refinement)
+9. camera-token insertion `x[:, :, 0] = cam_token` → `torch.cat` (in-place index-assign → `SELECT_V2`)
+
+Net result: `GATHER_ND = 0`, no `>4D` tensors, no `TRANSPOSE_CONV` / `BROADCAST_TO` / banned ops.
+
+## Fidelity note (honest)
+
+corr **0.99948** vs the official FP32 PyTorch pipeline. FP16 is **not** a factor (FP32≡FP16, corr 1.0). The
+residual ~0.05 % is the `align_corners=True→False` change in (7), which the mobile GPU forces — an irreducible
+hardware constraint, not a conversion error. Structure and edge sharpness are visually identical.
+
+## Usage (Android / LiteRT CompiledModel)
+
+```kotlin
+val model = CompiledModel.create(context.assets, "da3_small_gpu_fp16.tflite",
+    CompiledModel.Options(Accelerator.GPU), null)
+// input: [1,3,896,504] NCHW, ImageNet-normalized; output: [1,1,896,504] depth
+```
+
+## License
+
+Apache-2.0, inherited from the upstream [Depth Anything 3](https://github.com/ByteDance-Seed/depth-anything-3).

da3_small_gpu_fp16.tflite

@@ -0,0 +1,3 @@
+version https://git-lfs.github.com/spec/v1
+oid sha256:e170369a72ba1bba7486a4d2de555639fccd0595a9bb5b5349f7733ed4aebd1f
+size 55035456
