rdtand/Qwen3.8-27B-PrismaAQUA-5.5bit-vllm

Qwen3.8-27B — PrismaQuant AQUA-AURA, 5.5 bpp

A mixed-precision quantization of Qwen/Qwen3.8-27B in which every Linear was priced individually and given the format it earned, rather than one format being applied to the whole network. It ships as a stock compressed-tensors checkpoint: vanilla vLLM serves it with no forked runtime and no custom kernels.

21.98 GiB on disk (23,603,517,768 bytes), 5.5002 bits per parameter over the 24.35 B quantizable body parameters.

Method, sensitivity data and the rest of the artifact family: prismaquant.org

Measured

Every number below is in shipcard.json with its tool, git commit, serving-stack fingerprint and corpus hash. All five gates PASS and the card verifies.

measurement	value
KL vs BF16, all positions (n=8 × 512 → 4088 positions)	0.0338
KL vs BF16, confident positions (teacher top-1 > 0.5; 2067 of them)	0.0187
KL p99 / max	0.2917 / 1.3292
WikiText-2 test PPL (8176 tokens @ 512)	9.580 (mean NLL 2.2597)
— same measurement on the BF16 source	9.361 (mean NLL 2.2366)
— quantization cost	+2.34% PPL, +0.0231 nats/token
vLLM eager load + generate	PASS
vLLM CUDA-graph load + generate	PASS
Ship gate (PPL / p99 per-prompt NLL / coherence)	PASS (4.030 / 1.947)

How to read the KL, precisely. The teacher is the BF16 source scored on the same corpus bytes. Each position keeps the teacher's top-1024 logprobs plus a single lumped bucket for the residual mass (coverage: mean 0.988, min 0.573). Lumping outcomes can only reduce KL, so by the data-processing inequality this is a lower bound on true full-vocab KL — it understates damage, never overstates it. Calibration windows come from WikiText train; PPL scores WikiText test, so the two are disjoint.

The PPL pair is a fair pair. Both arms scored the identical corpus bytes (same corpus_sha256), the same 8176-token prefix, with the same tool in the same container. Their serve_fingerprint values differ, and 15 of the 16 differing manifest keys are incidental (timestamps, PIDs, container hostname, ephemeral ports, the model path — which must differ). The one substantive difference is that the quantized arm has fp4_gemm_cutlass_sm120.so and trtllm_utils.so resident and the BF16 arm does not. That is not a confound: loading the CUTLASS FP4 kernel is what serving this artifact means, so the delta measures what you actually get.

What is not established here. p99 KL is ~9× the mean and max is ~39× it. A low mean KL can hide a heavy tail, which is why the tail statistics are published rather than reduced away, and why no claim is made about behaviour at the worst positions. No downstream task suite was run by the pipeline; a community ToolEvalBench result is quoted under Limitations.

What the allocator chose

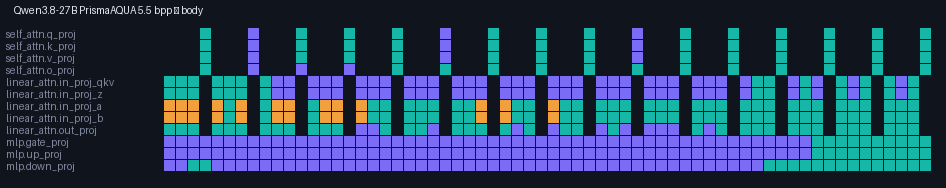

Each column is a layer, each row a projection, each cell one Linear: violet = NVFP4 (4-bit, W4A4, group 16), teal = FP8 E4M3 (8-bit, per-channel), orange = BF16 (16-bit). Blank cells are projections that layer does not have — only 16 of the 64 layers use full attention; the rest use linear attention.

Read the two adjacent rows in the middle: linear_attn.in_proj_qkv is nearly solid violet while linear_attn.out_proj, directly below it in the same layers, is nearly solid teal. The input projection earns 4 bits and the output projection earns 8. Nothing about the layers' shapes predicts that split — it came out of measuring each Linear's contribution to end-to-end KL.

This map is generated from the served bytes (the checkpoint's own config.json and safetensors headers), not from the pipeline's recipe file, so it shows what vLLM actually loads.

Formats are not spread uniformly, and that is the entire point. Of 496 body Linears:

format	count	where it landed
NVFP4 (W4A4, group 16)	247	mostly the MLPs — where the parameters are
FP8 E4M3 (channel)	223	mostly attention output and the full-attention layers
BF16 (passthrough)	26	only the tiny linear_attn gate projections in_proj_a/in_proj_b

Per role, from the shipped recipe:

role	n	NVFP4	FP8	BF16
mlp.gate_proj / mlp.up_proj	64 each	54	10	—
mlp.down_proj	64	48	16	—
linear_attn.in_proj_qkv / in_proj_z	48 each	34	14	—
linear_attn.out_proj	48	11	37	—
linear_attn.in_proj_a / in_proj_b	48 each	—	35	13
self_attn.{q,k,v,o}_proj	16 each	3	13	—

Read the out_proj row against the in_proj_qkv row: the same layer's input projection takes 4 bits while its output projection takes 8. No uniform-format method can express that, and nothing about the layer's shape predicts it — it came out of measurement.

Held at full precision (not quantized): lm_head, embed_tokens, the entire visual tower, the multi-token-prediction heads, and all norms and routers. This is a deliberate, disclosed choice, not an oversight — and it is large enough to be worth drawing:

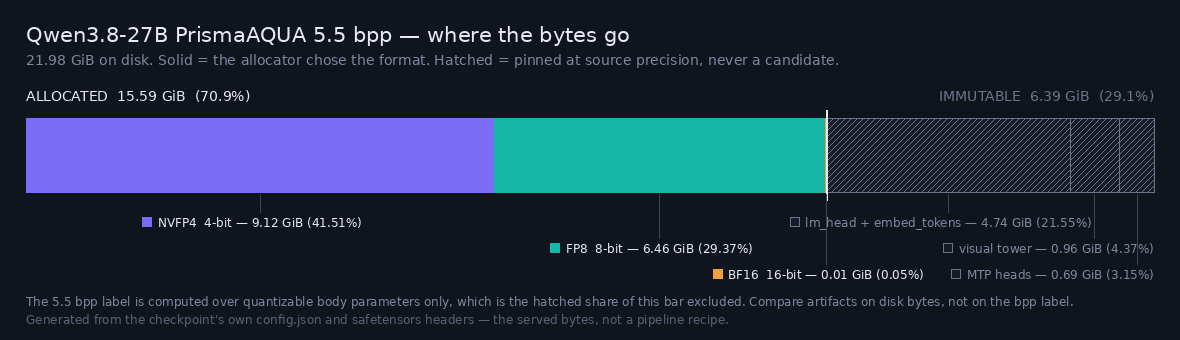

29.1% of the file was never the allocator's to decide. The hatched bytes are pinned at source precision and never enter the knapsack, so the 5.5 bpp label — which by convention covers quantizable body parameters only — describes the solid 70.9%. This is exactly why cross-artifact comparisons here must use disk bytes and not the bpp label: two checkpoints can carry the same bpp number and differ by gigabytes in what that number excludes.

How it was built

AURA prices each (Linear, format) pair by a KL-adjoint probe multiplied against the production-rendered weight delta — the same bytes the exporter will actually ship, so the surrogate, the validation and the artifact are one rendering. A multi-choice knapsack DP then allocates the byte budget across the menu {NVFP4, FP8_E4M3, BF16}.

AQUA adds the activation side. NVFP4 is W4A4: it quantizes activations too, and a weight-only cost model is structurally blind to that — NVFP4 and NVFP4A16 render weights bit-identically (max |ΔW| difference 0.0), so a weight-only DP is provably indifferent between a format that quantizes activations and one that does not, while their activations differ by 9.42% RMS. AQUA prices that term from the same probe, with an exact folded-normal tail integral for block-scaled formats.

The render recipe is GPTQ (fixed damping 1.0) + static activation ordering + joint scale optimization (JSO), which chooses NVFP4 block scales inside the GPTQ loop under an activation-weighted MSE.

Serving

Vanilla vLLM, no plugin, no custom kernels. This is the full command, including the shipped multi-token-prediction (MTP) head for speculative decoding:

vllm serve rdtand/Qwen3.8-27B-PrismaAQUA-5.5bit-vllm \
  --host 0.0.0.0 --port 8000 \
  --quantization compressed-tensors \
  --max-model-len 32768 \
  --gpu-memory-utilization 0.85 \
  --kv-cache-dtype fp8 \
  --enable-prefix-caching \
  --reasoning-parser qwen3 \
  --enable-auto-tool-choice \
  --tool-call-parser qwen3_xml \
  --speculative-config '{"method":"mtp","num_speculative_tokens":3}'

• --speculative-config turns on the MTP head (mtp.* tensors, BF16) with three draft tokens per step. Drop the line to serve without speculation. The pipeline's ship gate scores perplexity on a no-speculation serve and recorded no draft statistics for this artifact, so no acceptance rate is claimed here; users report the head working under vLLM 0.27 with this command.
• --reasoning-parser qwen3 keeps <think> blocks out of content; --tool-call-parser qwen3_xml matches the Qwen3.8 tool-call format (qwen3_coder also parses it).
• For image inputs add --limit-mm-per-prompt '{"image":4}' (or your own limit); the visual tower ships in BF16.

Memory. At 21.98 GiB of weights this wants a 32 GB card (5090-class) or larger. On a 32 GB RTX PRO 4500 a user reports ~140k tokens of context with fp8 KV at --gpu-memory-utilization 0.95 under vLLM 0.27.1; raise --max-model-len as your card allows. Verified on GB10 / DGX Spark (Blackwell sm_121) under vLLM 0.26 with the CUTLASS NVFP4 and FP8 paths (eager and CUDA-graph modes both pass; see shipcard.json).

Limitations — read these

• lm_head and embed_tokens are BF16 and account for 4.74 GiB, 21% of the artifact. They are excluded from the bit-per-parameter figure, which follows this project's convention of reporting bpp over quantizable parameters only. Compare against other checkpoints on disk bytes, not on the bpp label. Measurement on this model shows lm_head's sensitivity is extraordinarily row-concentrated (Gini 0.996; 99.3% of it in the top 1% of vocabulary rows), which means a uniform format is the wrong instrument for it in either direction. A per-row treatment is future work, not a claim made here.
• KL is a screening metric. A lower mean KL can hide a heavier tail. The per-sequence tail statistics are recorded in the shipcard rather than reduced to a single number.
• No downstream task suite was run by the pipeline (GSM8K, IFEval, MMLU, ToolEvalBench), so nothing here is a pipeline claim about task accuracy. Community measurement: on a single DGX Spark (downclocked to 2 GHz), vLLM 0.27.2rc1 with MTP at 5 draft tokens and a tuned thinking rate, this artifact scored 93/100 on tool-eval-bench v2.5.1 (129/138 points; 61 passed, 7 partial, 1 failed), with 2,311 prefill tok/s and 20.0 → 66.4 decode tok/s from 1 to 4 concurrent requests — report by @m0l0, 2026-08-15, sparkrun recipe included. Tool-call fidelity is sensitive to small probability shifts at decision points.
• MTP draft acceptance is unmeasured by this pipeline (see Serving).
• Calibration is WikiText-derived, and the held-out split used for selection is disjoint from the split the cost surrogates saw. Behaviour on distant domains is unmeasured.
• The visual tower is unquantized, so multimodal inputs run at full precision and get no size benefit.

Provenance

Every gate this artifact passed — and the exact tool, threshold, git commit and model hash behind each — is in shipcard.json in this repository. It is a refusal contract: tools/publish_artifact.py will not upload an artifact whose card does not verify. If a number in this card is not also in that file, treat this card as the stale one.

• Project: https://prismaquant.org
• Code: https://github.com/RobTand/prismaquant
• Source: Qwen/Qwen3.8-27B @ 1d4bf0f2ff6012fd82039f2fa52739d0dd7c60c0
• Method: PrismaQuant AURA + AQUA (COST_MODE=aura)
• Target profile: vllm_packed_moe
• Container: compressed-tensors mixed-precision (nvfp4-pack-quantized + float-quantized)

Citation

@software{tand_prismaquant,
  author  = {Tand, Robert},
  title   = {PrismaQuant: production-faithful KL--Fisher bit allocation},
  url     = {https://prismaquant.org}
}

Contact: robert.tand@icloud.com
